Antwerp Tool Die & Engineering



Your full service machining, fabrication, automation and design solution






    Antwerp Tool Die & Engineering, Inc. will manufacture details, tools, dies, gages, fixtures and automation projcets;
or we can provide complete design and build capabilities. There is no job too big or small, from a napkin sketch of a concept
in its infancy, to a worn out part to be reverse engineered, to proven replacment parts, to new automation projects;
Antwerp Tool Die & Engineering is dedicated to keeping your business running and moving forward. Our facility has
approximately 10,000 sq. ft. of floor space, housing a full range of machining, grinding, and fabrication equipment.
If it is made of metal, or plastics, we can get it done.
    The main focus of our business is service; we have the experience, and equipment to serve your tooling or machining requirements.
Contact us for a quotation on your next requirements.




Projects

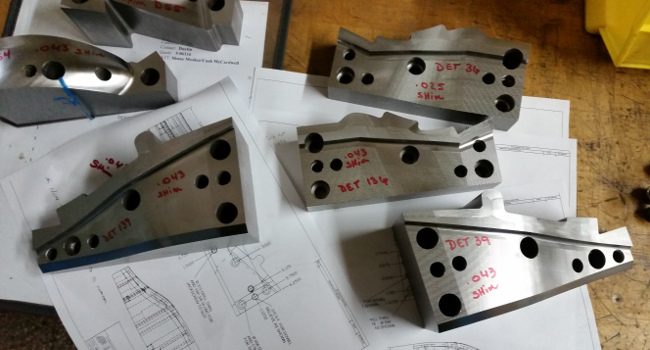

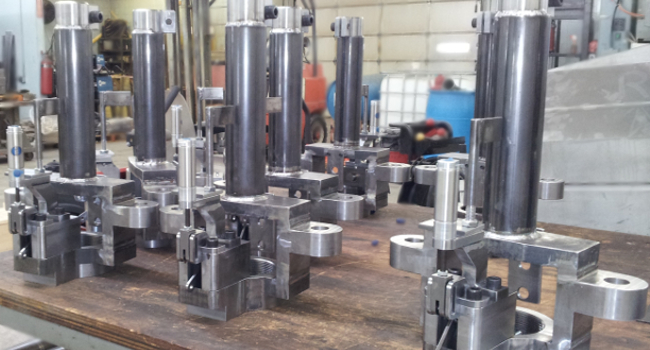

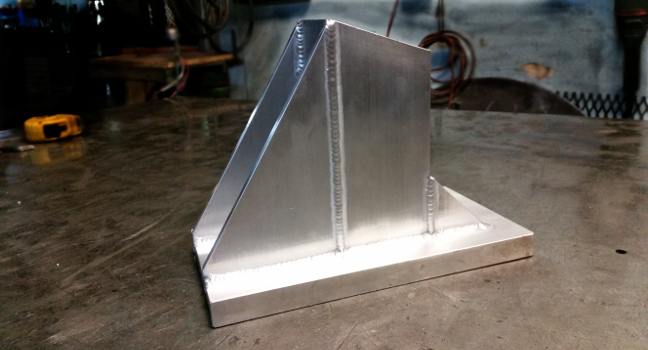

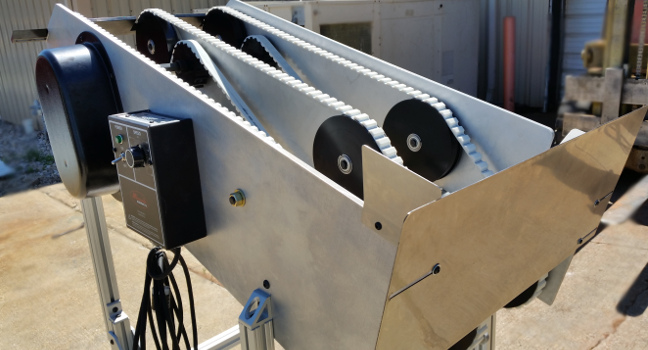

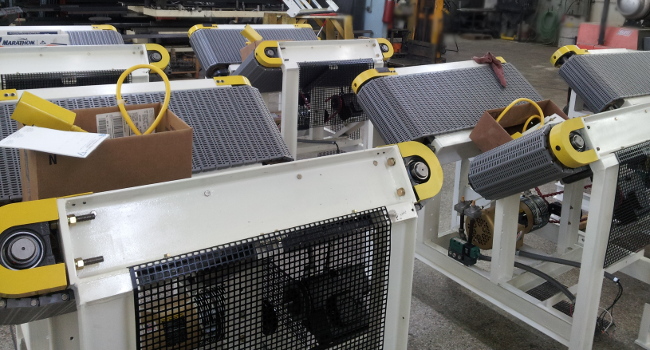

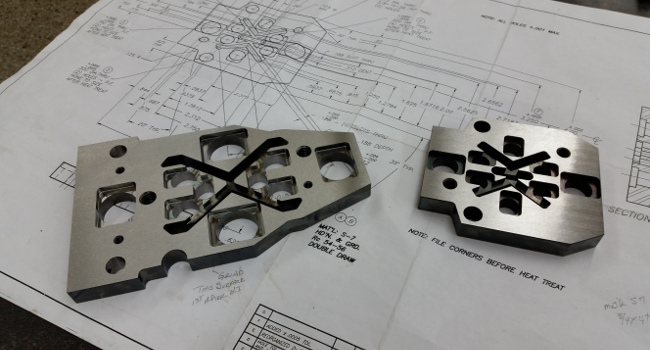

A Small Sample of Our Work



In House Equipment



CNC Mills CNC Lathes Software Grinding Equipment

Fadal VMC 40 (2) Danachi Lathes Ø8” x 24 Autocad 2000 Brown & Sharp Automatic Wet Surface Grinder
16” x 22” Travel Fanuc Control, 12 Station Turret   8” x 24” Magnetic Chuck
    Solidworks 2013
Mazak VCS 530c     Brown & Sharp Automatic Wet Surface Grinder
41” x 21” Travel Manual Lathes Shop Cam 6” x 18” Magnetic Chuck

  Clausing Lathe, Gap Bed Mastercam X9 w/3d Package Freeport Surface Grinder
Manual Mills Ø16” x 96” Ø24” Gap   6” x 18” Magnetic Chuck

(7) Bridgeport Mills Clausing Lathe Inspection / Gaging Equipment Reid Surface Grinder
  Ø12” x 36   6” x 18” Magnetic Chuck
    Optical Comparitor
Drill Presses     Boyer-Schultz Surface Grinder
  EDM Equipment Wilson Rockwell Hardness Tester 6” x 12” Magnetic Chuck
Speedmaster Radial Arm Drill Press
10” x 36” with 22” x 36” Table Charmilles Robofil 290 Wire EDM 36” x 48” Black Granite Surface Plate Cincinnati Tool & Cutter Grinder

Avery Single Spindle Drill Press EDM Tap Diesntegrator 18” x 24” Black Granite Surface Plate Toyoda OD/ID Universal Cylindrical Grinder
      Ø12” x 48”
    18” x 24” Pink Granite Surface Plate
Welding Equipment Fabrication Equipment   Atlas Blade Grinder

Miller XMT-304 – Multi Process Mig Welder Di-Arco Notcher Lifting Equipment Delta Double End Carbide Tool Grinder

Miller – Millermatic 200 Mig Welder Power Roll, 3 ft. Yale 5 Ton, Propane, Forklift Sunnen Horizontal Honing Machine

Thermal Arc 201 TS – Suitcase Tig Welder Power Roll, 4 ft. Overhead Crane, A – Frame 1 – Ton
      Press Equipment
Miller Dynasty 350 AC/DC Tig Welder Shear, 3 ft. Manual 18' x 6' Heavy Duty Trailer
      Hydraulic Arbor Press, 35 Ton
  Brake, 3 ft. Manual ¾ Ton Pick-Up
      Greenard Hydraulic Broaching Press, 4 Ton
  Di-Arco Power Tubing Bender
      Whitney Jenson Foot Operated Hole Punch
  Hydraulic Pipe Bender


In addition to our in house equipment we have strategic industry partners to provide a full range of services including:
Large Turning Ø36"+
Large Milling and Horizontal Boring
CMM Inspection
Gun Drilling
Laser and Waterjet
Heavy Forming and Fabrication
Many different types of coatings, heat treatments and sufrace treatments



Antwerp Tool Die & Engineering, Inc.
Is located just a few miles across the Indiana
Ohio State Line; giving us a prime location to
quickly service businesses in Northeast
Indiana and Northwest Ohio

Contact Information:

3167 CR 424 (Old 24)
Antwerp, OH 45813

Ph.   419.258.5271
          800.494.2833
Fax. 419.258.2326

We look forward to the opportunity
to work with you on your next project
